ERW API Steel No Need Change Rollers ZTF Pipe Mil Tube Making Machine

Name: ERW API Steel No Need Change Rollers ZTF Pipe Mil Tube Making Machine
Brand: ZTZG
Price: 1 USD

Buy cheap ERW API Steel No Need Change Rollers ZTF Pipe Mil Tube Making Machine product

Brand Name : ZTZG

Model Number : ERW508

Certification : ISO9001

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 sets/year

Delivery Time : 90 days

Packaging Details : All mechanical equipment is nude packing and electrical parts are packed in wooden cases

Product Name : ERW API Steel No Need Change Rollers ZTF Pipe Mil Tube Making Machine

Pipe Material : Carbon Steel Coil

Production capacity : 180,000ton/year

Thickness : 6.0mm-18.0mm

Pipe shape : Square, Rectangular

Mill installed capacity : 1000 kw

Square & rectangle tube : 170mm×170mm -330mm×330mm

Production Speed : 25 m/min

Technology : ZTF,directly square-to-square(DSS) technique,Round-to-square

Products : API pipes, tower footing tubes, automobile beam steel pipe

Line Area : 160m(length) ×16m (width)

After-sales service provided : Engineers available to service machinery overseas

Contact Now

ERW API Steel No Need Change Rollers ZTF Pipe Mil Tube Making Machine

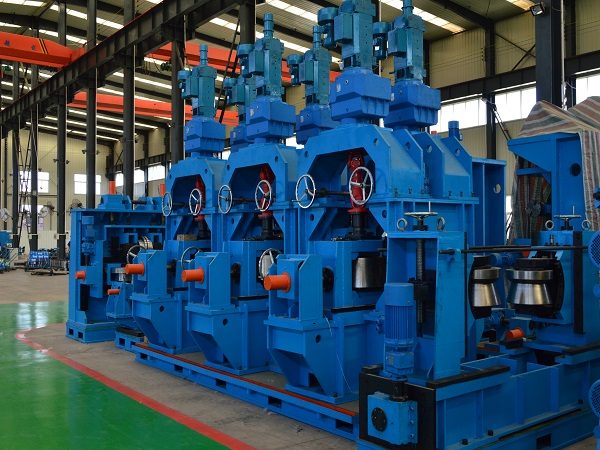

ERW508 high frequency longitudinal welded pipe production line / pipe making machine / tube mill is designed to produce welded pipes of 273mm-508 mm in OD and 6.0mm-18.0mm in wall thickness, as well as corresponding square and rectangular pipe.

ERW API Steel No Need Change Rollers ZTF Pipe Mil Tube Making Machine

Advantage:

When producing round pipe, it can utilize ZTF forming technique

When producing square & rectangular tube, it can utilize directly square-square (DSS) technique

Products:

Architectural structure pipes, API pipes, tower footing tubes, automobile beam steel pipe and other products.

ERW API Steel No Need Change Rollers ZTF Pipe Mil Tube Making Machine

Basic Technical Information of Welded Pipe Production Line
Product&yield	Round Pipe	273mm-508mm Thickness: 6.0mm-18.0mm
	Square & rectangle tube	170mm×170mm -330mm×330mm Thickness: 6.0mm-18.0mm
	Length	6m-12m Length Tolerance: ±3mm
	Production Speed	25 m/min
	Production capacity	180,000ton/year
Consumption	Mill installed capacity	1000 kw
	Line Area	300m(length) ×30m (width)
	worker	6-8 workers
Raw Material	Carbon Steel coil	Carbon steel coil Q235B(ASTM GR·D,σs 230)
	Width	860mm-1590mm Thickness: 6.0mm-18.0mm
	Coil ID	580-760mm
	Coil OD	Max 2300mm
	Coil Weight	35.0t

Technical flow

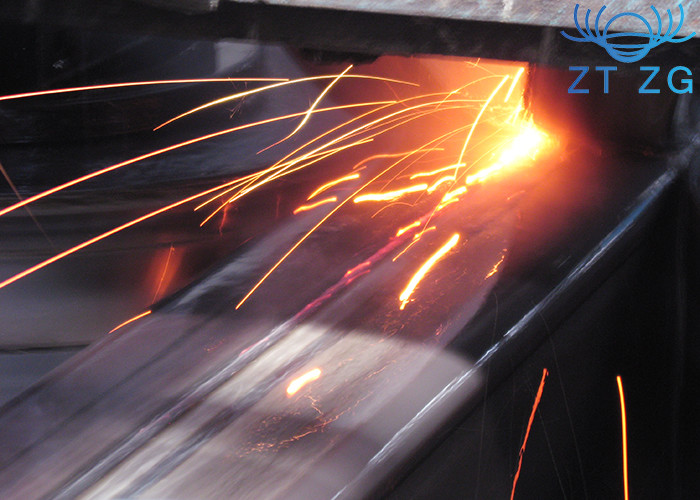

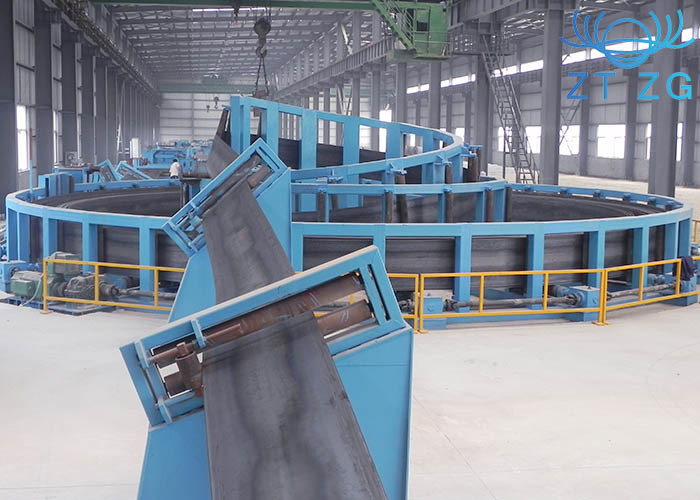

Scrolling up→ Uncoiling → Shear and Welding→ Spiral accumulator→ Forming → H.F. induction welding→ External burr removing→ Cooling → Sizing→ Flying saw → Run out table →Inspecting→ Packing→ Warehouse

ERW API Steel No Need Change Rollers ZTF Pipe Mil Tube Making Machine

We can also design square tube machine depends on customer’s requirement.
