ERW 89 380-480V Steel Pipe Production Line Cold Roll Forming Machine

Product Categories
Shijiazhuang Zhongtai Pipe Technology Development Co., Ltd
Contact Now

ERW 89 380-480V Steel Pipe Production Line Cold Roll Forming Machine

  • 1
  • 2
  • 3

Brand Name : ZTZG

Model Number : ERW 89

Certification : CE, ISO9000

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 200 sets/year

Delivery Time : 120 days

Packaging Details : All mechanical equipment is nude packing and electrical parts are packed in wooden cases

Item : Steel Pipe Production Line

Raw Material : Carbon steel, black steel, stainless steel, Steel, HR carbon steel, Q235,S235

Diameter : 42-89mm

Thickness : 2-6mm

Prodution Capability : 20-120m/min

Applicable Industri : oil, gas transport

Welding type : Solid-state high frequency welding

After Warranty Serve : Video technical support, Online support, Spare parts

Local Service Location : Egypt, Turkey, Philippines, Brazil, Peru, Saudi Arabia, Mexico, Russia

Marketing Type : New Product 2021

Warranty of core part : 1 Year

Core Components : PLC, Engine, Bearing, Gearbox, Motor, Un-coiler, Hydraulic shear

Condition : New

Type : Pipe Production Line

Production Capacity : 98%

Voltage : 380-480V

Power : 600KW

Dimension(L*W*H) : 100*15*6m

Key Selling Points : High-accuracy, Automatic

Contact Now


Clold Rolled Carbon Steel Roll Forming Machine Steel Pipeline Steel Pipe Production Line

ZTZG Steel Pipe Making Machine Introduction
Steel tube production line to certain specifications of the galvanized steel belt feeding machine curled up into a tube by forming roller steel billet, and then use the high frequency of proximity effect and skin effect make the tube side quickly heated to welding temperature, and under the squeezing roller extrusion complete welding

ZTZG Pipe Making Machine Parameters
Product Parameter
Product&yield
Round Pipe
8mm-720mm Thickness:0.8mm-22mm
Square & rectangle tube
10mm×10mm -600mm×600mm
Thickness:0.8mm-22mm
Length
6m-12m Length Tolerance: ±3mm
Production Speed
20-120 m/min
Production capacity
30,000ton/year
Consumption
Mill installed capacity
220 kW
Line Area
185m(length) ×27m (width)
worker
6-18 workers
Raw Material
Carbon Steel coil
Carbon steel coil Q235B(ASTM GR·D,σs 230)
Width
25mm-2200mm Thickness: 0.8mm-22.0mm
Coil ID
580-700mm
Coil OD
Max 1800mm
Coil Weight
6.0t

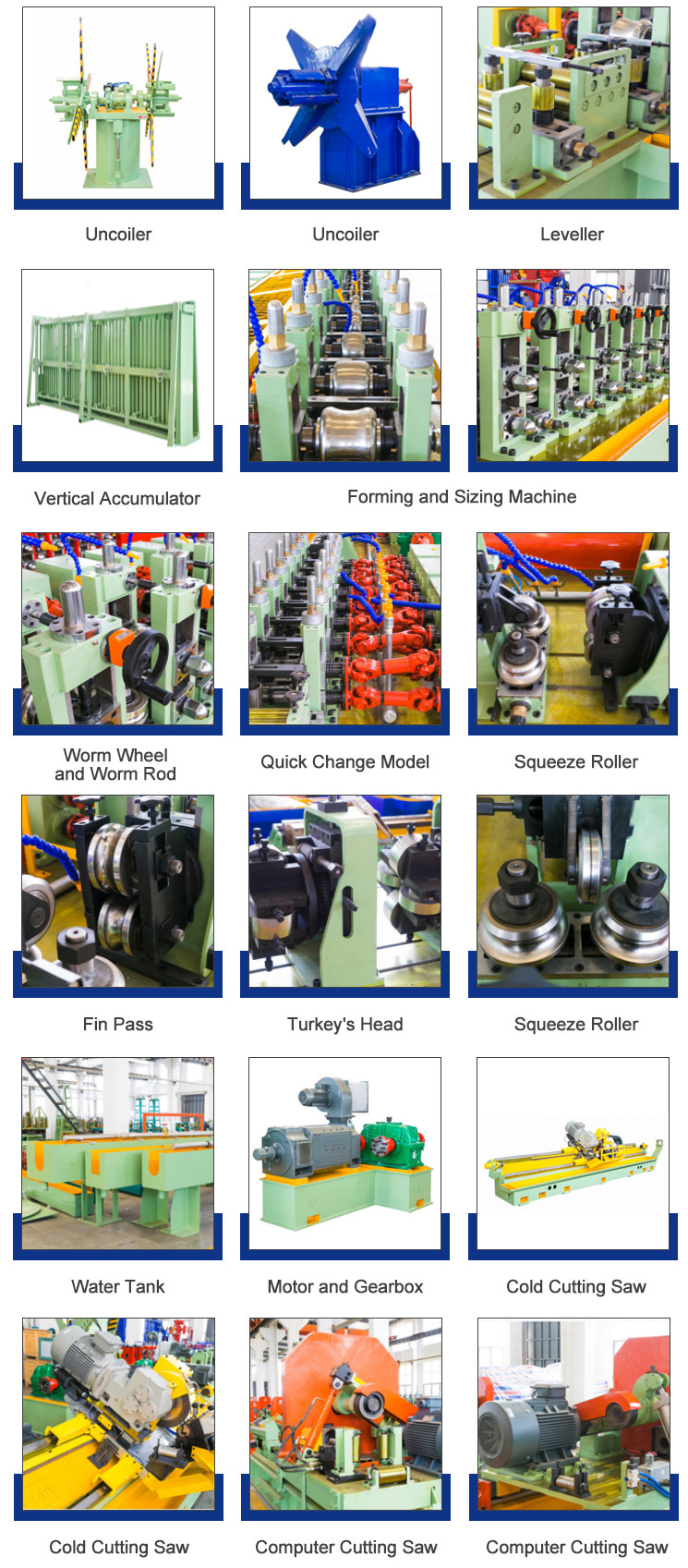

ZTZG Tube Mill Machine Details

ERW 89 380-480V Steel Pipe Production Line Cold Roll Forming Machine

ZTZG Company Introduction

ERW 89 380-480V Steel Pipe Production Line Cold Roll Forming Machine
ERW 89 380-480V Steel Pipe Production Line Cold Roll Forming Machine

ERW 89 380-480V Steel Pipe Production Line Cold Roll Forming Machine

ERW 89 380-480V Steel Pipe Production Line Cold Roll Forming Machine


FAQ



Q: Are you a manufacturer?
A: Yes, we are a manufacturer. We have 4 factories ( Machining, Assembling, Heat treatment, and Moulding ). We also have our own R&D department. Welcome to visit us.
Q: What kind of payment term do you do?
A: We do T/T.
Q: What info do you need before giving me the price and proposal?
A: Since we design individual machines based on our customer's requirements, we need your desired products' basic dimensions, including all the pipe diameter(or tube length), thickness range, usage, raw material steel grade, coil weight, and degree of automation.
Q: What should I do if I just start a new business?
A: Contact us immediately, we provide a free consultant for pre-sales service. Also, we can help you solve the raw material (steel coil) purchase, worker training, international market price, and more.
Q: How do you do QA?
A: We have a special team to do strict QA, this is one of our strengths:
(1)Every gearbox will be tested for 8 hours with oil inside to guarantee there is no leak.

(2)Every shaft will be inspected for centering jumpiness.
(3)Every roller will be checked to make sure it's in the range of tolerance critical parts will be inspected for all dimensions.
Q: Why I should choose you? what are the differences between you and other Chinese suppliers?
A: We are concentrating on pipe-making machines for more than 20 years. We have constructed many steady trading partners in Asia, Africa, the middle east, Europe, and South America throughout the years. Our innovative designed production line and every single unit of the production line are economical and practical.



Model List
Model
Round pipe
mm
Square pipe
mm
Thickness
mm
Working spead
m/min
ERW20
Ф8-Ф20
6x6-15x15
0.3-1.5
120
ERW32
Ф10-Ф32
10x10-25x25
0.5-2.0
120
ERW50
Ф20-Ф50
15x15-40x40
0.8-3.0
120
ERW76
Ф32-Ф76
25x25-60x60
1.2-4.0
120
ERW89
Ф42-Ф89
35x35-70x70
1.5-4.5
110
ERW114
Ф48-Ф114
40x40-90x90
1.5-4.5
65
ERW140
Ф60-Ф140
50x50-110x110
2.0-5.0
60
ERW165
Ф76-Ф165
60x60-130x130
2.0-6.0
50
ERW219
Ф89-Ф219
70x70-170x170
2.0-8.0
50
ERW273
Ф114-Ф273
90x90-210x210
3.0-10.0
45
ERW325
Ф140-Ф325
110x110-250x250
4.0-12.7
40
ERW377
Ф165-Ф377
130x130-280x280
4.0-14.0
35
ERW406
Ф219-Ф406
170x170-330x330
6.0-16.0
30
ERW508
Ф273-Ф508
210x210-400x400
6.0-18.0
25
ERW660
Ф325-Ф660
250x250-500x500
6.0-20.0
20
ERW720
Ф355-Ф720
300x300-600x600
6.0-22.0
20
